- Incredibly powerful 24“ 4th generation driver with carbon fiber cone and over 4” peak to peak excursion *

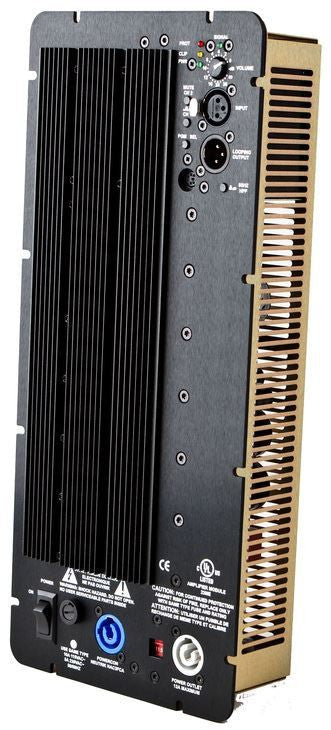

- 4,000 watt amplifier (sustained power) *
- 14-180 Hz +/- 0.75 dB (strong 6 Hz typical in-room response)
- Solid enclosure overbuilt using high quality 3/4" Baltic Birch plywood (more info on FAQs page) *
- Round, flush inset grille with black grill cloth included. Grille Is held firmly with magnets.
- 28" x 38" x 23"D (vertical or horizontal orientation)
- 210 pounds
* Built in America with globally sourced components
Finishes
A Duratex durable coating is the standard finish. Maple, oak, and walnut are standard available veneers. Other veneers may be available, please contact us for details. A challenge with the Mariana 24 is its size requires 12' long veneer and even longer in the 24SS so veneer options are reduced (exotics likely not available). One mitigation is if the Mariana 24SR is to be oriented horizontally, we can have two seams on the bottom, which would open up many more veneers.
For our veneered subwoofers, our standard stain colors are Natural, Golden Brown, Light Brown, Orange, Cherry, Dark Brown, Rosewood, Espresso, and Black. We can also do custom colors to match items such as cabinets or furniture.
Measurements
Ground plane measurements taken in the middle of a field with the microphone 2 m from the subwoofer. More information on measurement equipment and process can be found on the FAQs page.
Click for full size image.
